TKH Security: How to Install the Park Assist Solution

Looking to install a Park Assist Solution, an Automated Parking Guidance System (APGS), in your facility? Whether you're a facility manager, systems integrator, or contractor, this guide will walk you through the essential steps to install the M5 Smart-Sensor based APGS.

This comprehensive how-to provides the high-level overview you need while highlighting key installation points that ensure your system runs smoothly from day one.

What is a Park Assist Solution?

The Park Assist Solution from TKH Security is a camera-based smart parking guidance system designed to enhance the driver experience, streamline operations, and increase parking efficiency. At the core is the M5 smart-sensor, which uses AI-driven HD cameras to detect vehicles, read license plates, and communicate real-time occupancy data to both operators and parkers via digital signage and integrated software.

Key Components in the M5 Installation

Before diving into the installation process, it’s helpful to understand the primary components that make up the M5 based Park Assist Solution. Each element plays a specific role in ensuring the system delivers accurate real-time data, intuitive driver guidance, and long-term reliability. From the ceiling-mounted sensors to the power cabinets and digital signage, these components work together seamlessly to form a complete automated parking guidance solution.

• M5 Sensors (Single- or Dual-Camera) - mounted on channels above the drive aisle to monitor 3 - 6 bays, space by space
• Mounting Channel System - suspended from the ceiling to house the sensor either via track or pendant
• Power Cabinets - house power and communication to sensor strings
• Wayfinding Signs - guide drivers to available spaces with real-time digital signage
• PoE Injectors & Cabling - enable data and power flow to the sensors and signs

Step-by-Step: Installing the Park Assist Solution

Installing our APGS involves a series of coordinated steps designed to ensure precision, performance, and long-term reliability. While the full process is detailed in our installation manual, the high-level sequence outlined below provides a clear overview of what to expect during the installation process.

“One of the biggest advantages of our installation process is that your garage can remain fully operational while the system is being installed. There’s no need for a full shutdown. We work hard to keep disruptions to a minimum so you can continue serving your customers and generating revenue throughout the project,” shared Jason DeChello, Director of Project Management, TKH Security.

Please note that for any Park Assist installation we recommend checking local and state laws, rules, and regulations for electrical installations.

1. Planning and Layout

Before your installation begins, you’ll choose who will be installing the system: a Park Assist installation team with a dedicated project manager, your own internal team, or a third party installer.

“For your installation, you’re assigned a dedicated project manager who oversees every step from scheduling and site coordination to quality control and final handoff,” said DeChello. “This ensures clear communication, on-time delivery, and a smooth experience from start to finish.”

Your installer will begin by referencing custom engineering drawings developed for your facility. These plans define exact sensor placements, cabinet locations, and cabling runs. The installer will mark the centerline of each driving lane to ensure sensors are aligned precisely to monitor the intended bays.

2. Mounting Channel Installation

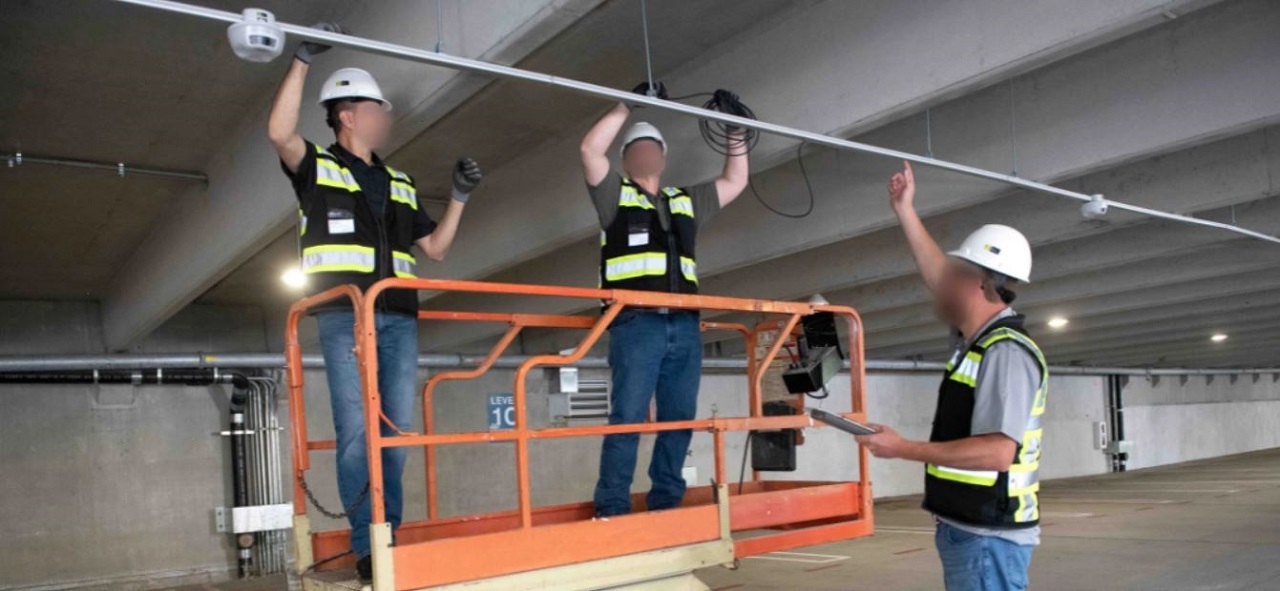

Next, the team will suspend aluminum mounting channels or pendants from the ceiling using threaded rods and clips. This hardware forms the backbone of the system, suspending the M5 sensors above the drive aisle. Channels will be cut to length onsite and adjusted to work around structural elements like beams or pipes.

3. Sensor Mounting

Once channels are secured, your installer will snap each M5 sensor into place according to the site plan. Camera angles will be adjusted (left, center, right) based on the number and orientation of bays being monitored. Installers will ensure proper alignment and clean the lenses for optimal performance.

4. Power Cabinet Installation

The power cabinets, responsible for powering and connecting the sensor network, will be mounted on predefined walls or columns. Installers will follow electrical codes to connect power safely and ensure cabinets are oriented correctly for ventilation.

5. Cabling and Power Connections

Your installer will connect the system using pre-terminated CAT6 cables to daisy-chain the sensors and signs. Additional power cabling will be run from the cabinets to passive PoE injectors. Each string will be configured to meet voltage and distance specifications, ensuring optimal system performance.

6. Signage Installation

To guide drivers to levels or aisles with space vacancy, wayfinding signs will be suspended near key decision points throughout the garage. Installers will mount these signs and connect them using PoE-enabled CAT6 cabling.

7. System Commissioning

Finally, your installer will power up the system and perform a full commissioning check. This includes verifying sensor sequences, inspecting LED patterns, and confirming communication with the backend software. Each sensor's performance will be validated to ensure the system is operating exactly to design.

For a deeper dive into each installation phase and to see real-world footage, don’t forget to watch our official M5 Installation Video.

What questions do you have?

Installing the Park Assist Solution’s M5 system is a straightforward process when following engineered plans and best practices. With high-resolution vehicle detection, license plate recognition (LPR), and real-time wayfinding, the APGS transforms the parking experience for both drivers and operators. If you’re ready to learn more or need assistance with an upcoming project email info.us(at)tkhsecurity.com or reach out to your Reginal Sales Executive.
