projekt w: Innovation – Connecting INTEGRA-pw Car Park Safety Barrier to On-Site Concrete Elements

 INTEGRA-pw safety barrier can also be fitted directly to on-site concrete elements.

Due to customer requirements, we have intensively looked at what way there is of fastening the INTEGRA-pw car park safety barrier directly to concrete.

The challenge: ensuring the dissipation of high loads via the mounting flanges into the concrete parts whilst maintaining minimum distances to the edge. The grade of concrete also plays an important role here.

The solution: through tests and expert verification, projekt w has established the use of extended mounting flanges of up to 560 mm and permanently integrated them in the portfolio. As these are always part of the general building authority approval and verifications of stability, the fastening elements are also always part of the scope of delivery provided by projekt w.

Conclusion: Under clearly determined conditions, we can solve this problem for you in future too and the INTEGRA-pw safety barrier can also be fitted directly to on-site concrete elements.

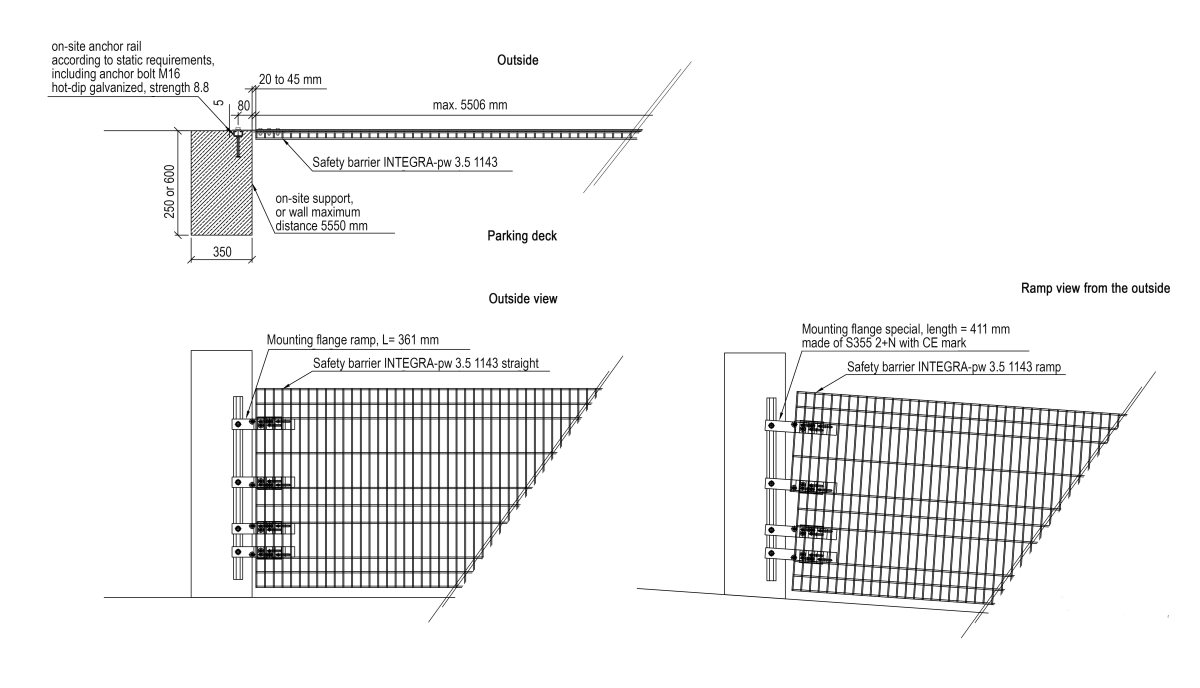

image of a technical drawing

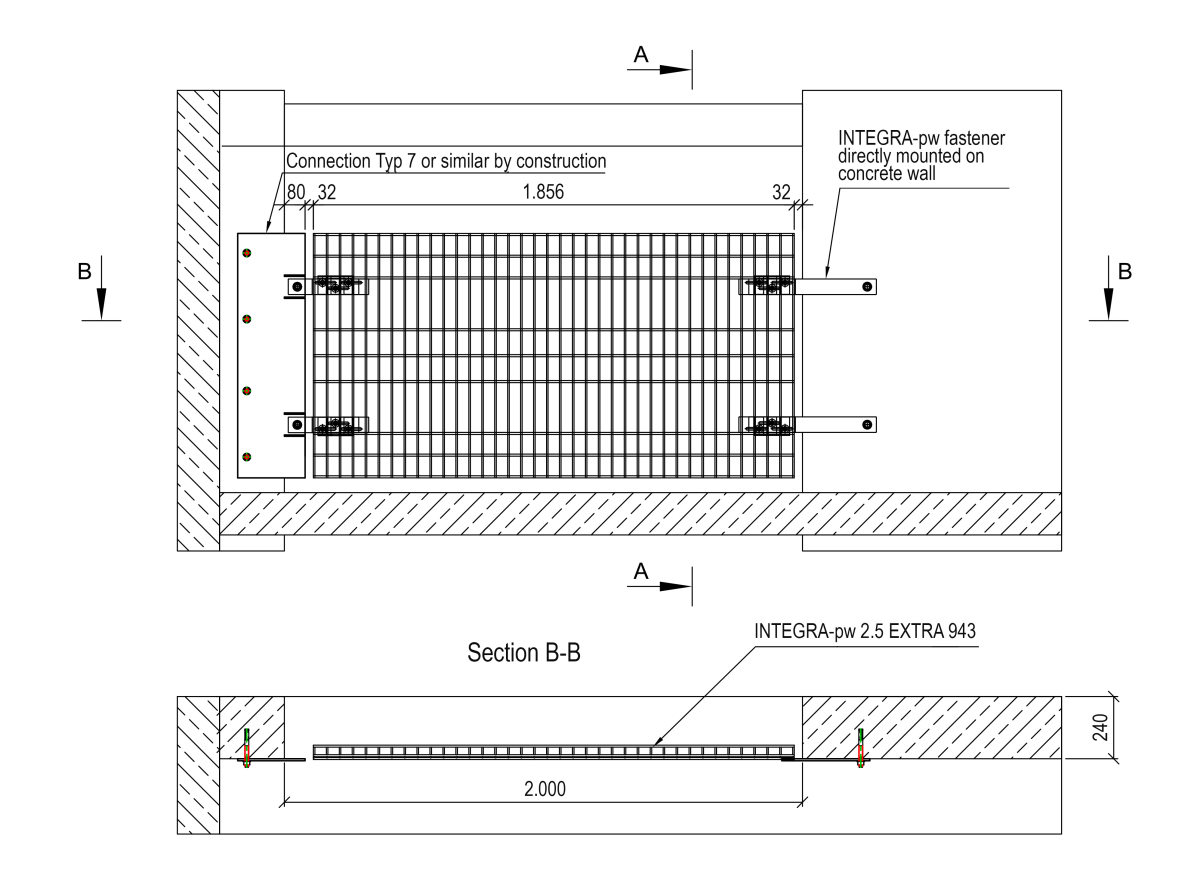

image of a technical drawing

As important parameters need to be taken into account, fastening the car park safety barrier directly to concrete elements should be discussed in advance with projekt w. In this way we can find the ideal solution for you.

Do you have a need at the moment? Are you simply interested and curious?
Don’t hesitate to get in touch with us.

Martin Kieroth
Team Leader Sales International
phone: +49 5258 9828-525
mobile: +49 172 1813291

About projekt w

projekt w

projekt w was founded in 1984 and is located in central Germany and specializes in safety barriers for car parks. We have set ourselves the task of integrating our products harmoniously into parking structures. The INTEGRA-pw product portfolio replaces conventional systems such as concrete parapets or guardrails and meets applicable European and US standards.
