INTEGRA-pw X-LONG – Projekt W's Solution for Large Distances Between Columns

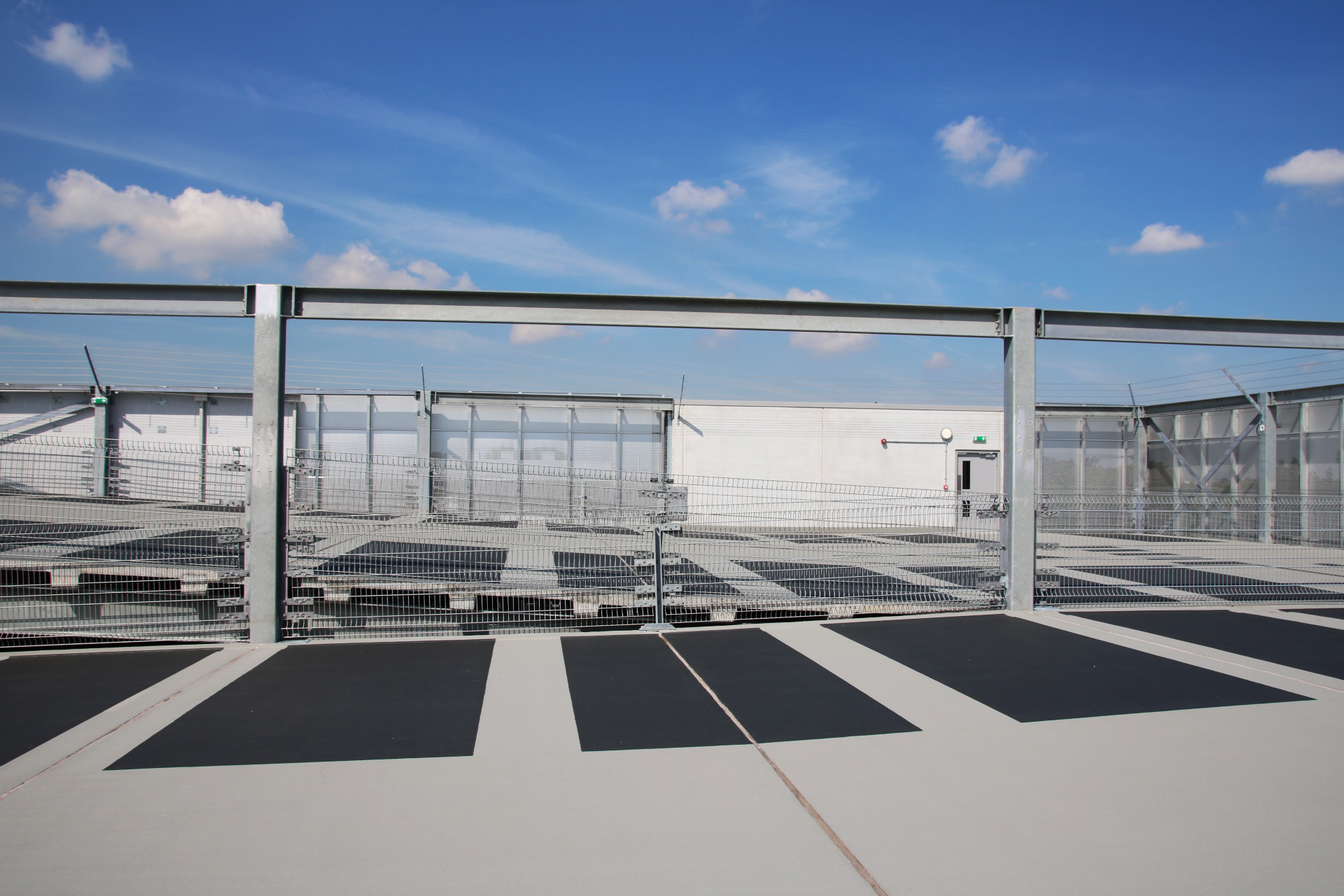

Birmingham - Parking Hospital Sandwell

Since the start of the development of our INTEGRA-pw safety barrier more than 15 years ago, customers have been requesting solutions for larger and larger distances between columns.

Whereas the maximum mat length of the INTEGRA was 5.0 m at the start of the development, projekt w has increased the maximum mat length in the second step to 5.5 m. These dimensions are oriented to the frequently encountered dimensions of the building grid of multi-story car parks – 2.50 m x 16.0 m or 5.00 m x 16.00 m. We initially focused on the width grid of 5.00 m before concentrating on the length dimension (16.0 m / 3 fields = 5.33 m/field).

In recent years we have received an increasing number of inquiries regarding car safety barriers for building, or column grids of 7.50 m x 16.0 m and we have succeeded in developing a solution for this for the international markets – the INTEGRA-pw X-LONG. The familiar elements of the INTEGRA-pw, such as the steel lattice mats 943 and 1143 and the fastening kits, are combined here with new product-related elements. Due to the enormous width and dead weight of the components, however, this variant of the INTEGRA-pw is supplied as a two-piece element.

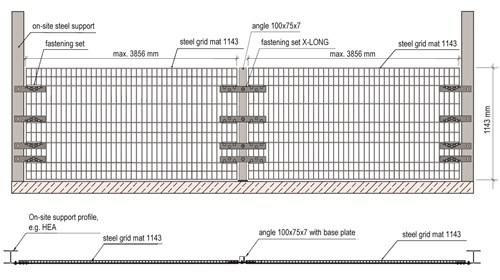

 Zeichnung INTEGRA-pw X-Long 1143

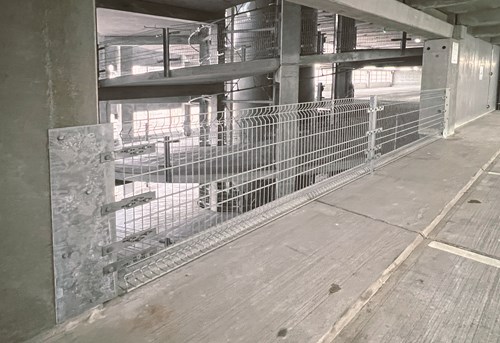

The illustration shows that the X-LONG consists of two steel lattice mats, which are connected centrally to each other directly at the installation site. In the connection area, an on-site auxiliary column is mounted on the mat connection and is erected on the parking deck. Since this column (referred to here as an angle 100 x 75 x 7) is not required for absorbing the loads from a vehicle impact, it does not need to have a force-locked connection with the parking deck. The erection of the auxiliary column on the parking deck reduces the vertical sagging of the mats due to their dead weight and thus ensures the planned parapet height.

For the absorption of the impact loads and to limit the resulting deformations or sagging, the X-Long is mounted on both sides to the support structure columns with four of the distinctive fastening units from the INTEGRA-pw product family. The individual lattice mats are also connected to each other at four overlapping points.

For applications with excessively large distances between columns (greater than 5.50 m), multi-story car parks for vans with a high dead weight (e.g. van weighing up to 3.5 tonnes), or to limit the mat deformation due to a vehicle impact, 4 fasteners must be provided on each side of the mat.

We will continue in the future to face up to the constantly changing requirements of our customers.


About projekt w

projekt w

projekt w was founded in 1984 and is located in central Germany and specializes in safety barriers for car parks. We have set ourselves the task of integrating our products harmoniously into parking structures. The INTEGRA-pw product portfolio replaces conventional systems such as concrete parapets or guardrails and meets applicable European and US standards.
